DSHG series
The electro-hydraulic directional valve consists of an electromagnetic directional valve and a hydraulically controlled directional valve. When the solenoid coil is energized, the pilot valve switches the direction of the pilot oil flow and pushes the valve shaft of the hydraulic directional valve to change the oil flow direction of the hydraulic system oil circuit.
○High pressure and large flow

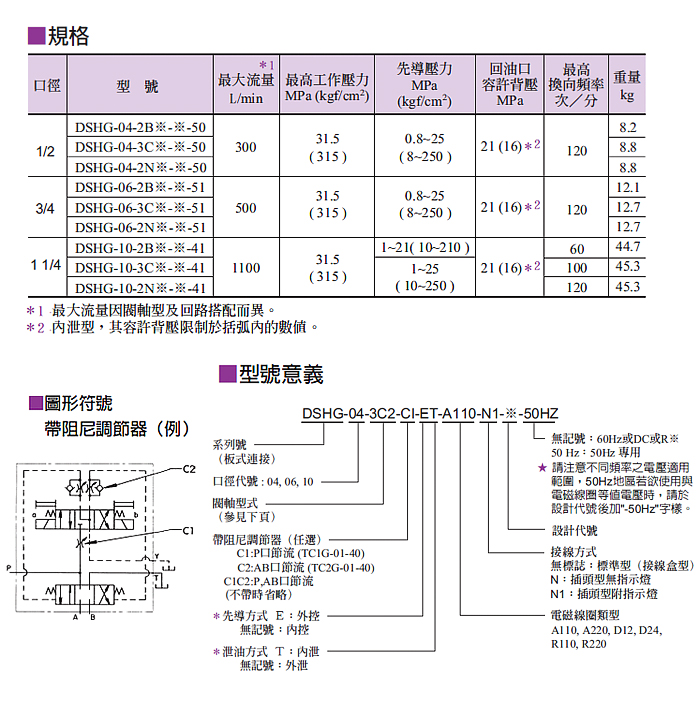

This valve can pass large flow rates, such as 300L/min for "04" caliber valve, 500L/min for "06" caliber valve, 1100L/min for "10" caliber valve, plus 31.5MPa high pressure, which can enable system design More compact.
○Low pressure loss
Each valve greatly reduces the pressure loss, thus increasing the energy saving effect of the system.
