SBSG low noise electromagnetic control relief valve

Your position: Home page > Product center > Taiwan Oil Field Yutien > SBSG low noise electromagnetic control relief valve

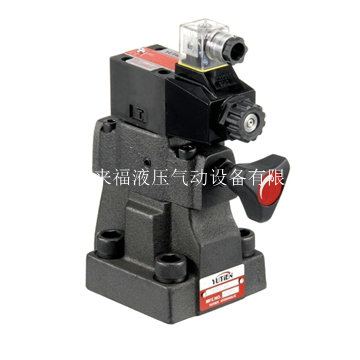

SBSG low noise electromagnetic control relief valve

SBSG low noise electromagnetic control relief valve

Classification: Taiwan Oil Field Yutien

Ddetailed information

SBSG low noise electromagnetic control relief valve series features:
SBSG low-noise electromagnetic control relief valve is a combination of low-noise pilot valve and electromagnetic directional valve. In addition to the characteristics of the SBG series, the pressure of the pump is remotely unloaded by an electric signal acting on the solenoid valve, or guided by connection The relief valve is adjusted to the solenoid valve port, so that the system obtains two-stage or three-stage pressure control.
SBSG low noise electromagnetic control relief valve series model description:
SBS
G
-06
1P
-3
1A2
series
Installation type
Nominal diameter in
way to control
Pressure adjustment range Mpa
Coil voltage

G: Plate type



A1:AC110V
low noise
03：3/8”
1PN: Normally open unloading
1：0.7~7
A2:AC220V
Electromagnetic guided
06：3/4”
1P: Normally open to maintain pressure
2：3.5~14
A3:AC380V
Relief valve
10：11/4”

3：7~25
D1:DC12V




D2:DC24C
SBSG low noise electromagnetic control relief valve series specifications:
Model
high working pressure Mpa
Pressure adjustment range Mpa
Rated flow e/min
SBSG-03
25
1:0.7~7
50
SBSG-06
2:3.5~14
120
SBSG:10
3:7~!25
220
SBSG low noise electromagnetic control relief valve series product specifications:
Types of
Control valve
Material
cast iron
model
S-BSG-03-**
Brand
Taifeng
Scope of application
mechanical
Product alias
Electromagnetic relief valve
Applicable medium
Oil
proper temperature
80 (℃)
Nominal pressure
210 (MPa)
Nominal diameter
0610 (mm)
Installation form
Plate
Operating temperature
high temperature
Type (channel position)
Straight-through
Connection Type
Flange
Parts and accessories
Accessories
Flow direction
unidirectional
Drive way
electromagnetic
form
Angle
Stressful environment
high pressure
Body material
cast iron
